EC480 Custom Pile Driving Boom for Volvo Excavator | Reinforced Vibro Hammer Arm for Heavy Foundation Works

EXCAVATOR PILE DRIVING ARM & BOOM

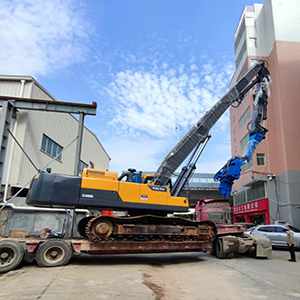

The EC480 Pile Driving Boom is a reinforced excavator attachment developed for Volvo EC480 (48-ton class) machines, designed to deliver stable and efficient performance in intensive piling operations.

This piling boom is especially suitable for projects that require continuous vertical force and high vibration output, such as sheet pile driving, solar PV pile installation, bridge foundations, riverbank reinforcement, and underground support construction.

Manufactured with selected high-strength structural steel and precision-processed through CNC cutting and multi-layer welding, the EC480 piling arm maintains excellent rigidity and fatigue resistance even during prolonged vibro hammer operations.
Each unit is engineered based on actual working conditions, allowing a custom balance between strength, reach, and operational control.

 ▎KEY FEATURES

✔ Engineered for EC480 Platform

Boom geometry and load distribution are optimized specifically for Volvo EC480 excavators, ensuring smooth movement and reliable piling accuracy.

✔ Anti-Vibration Structural Design

Reinforced key stress areas and optimized plate thickness reduce deformation and extend service life during high-frequency hammer work.

✔ Flexible Hammer Compatibility

Designed to support various hydraulic vibro hammers used in foundation and sheet pile projects.

✔ Accurate Vertical Performance

Improved structural alignment helps operators maintain precise verticality when driving steel piles or tubular piles.

✔ Custom Hydraulic Arrangement

Hydraulic pipelines can be routed according to jobsite requirements, improving safety and maintenance convenience.

 ▎CONFIGURATION SITUATION

 ▎STEEL CUTTING

The incision is flat to ensure the accuracy of cutting steel plates

 ▎GROOVE WELDING

Before welding, we have use big edge milling machine mill(taper process) the edge of the sheet. So the welding can go to the internal of the steel-sheet and make the structure have higher performance.

Orbital welding machines are used for welding, and manual strengthening and welding are performed at corners and reinforcements.

Our boom and arm are large-welded box structure and thick or multi-plates for high-stress areas.

Also the inside have strength plate make it more stronger.

 ▎LARGE BORING MACHINE -- BUTT BORING

The processing efficiency is higher, the precision is better, and the product quality and labor efficiency are greatly improved.

 ▎SURFACE TREATMENT OF WORKPIECE--SHOT BLAST

The small steel balls of the large shot blasting machine are used to hit the surface of the workpiece to remove the rust and small impurities on the surface of the steel plate, so that the surface of the workpiece presents the original metallic luster and increases the adhesion of the primer.

 ▎PRIMER AND PAINT TREATMENTS

Spray with the same paint as the brand excavator factory to ensure consistent color.

 ▎HIGH PRESSURE HARD PIPE & PIPELINE BENDING TREATMENT

1. Friction welded flange and oil cylinder - use machine high-speed friction welding, which has higher efficiency and avoids artificial false welding and air bubbles.

2. Automatic pipe bending machine - use numerical control to control the degree of bending of the pipeline, and automatically bend the seamless steel pipe, with higher precision.

 ▎PAINT / PACKAGING / TRANSPORTATION SERVICES

1.The color paint is consistent with the brand excavator factory (customizable color), using high-quality paint to make the product more delicate and beautiful.

2. We use stretch film to package the product. (Three-plywood wooden frame needs to be noted)

3. We have cooperated with many shipping companies in China for many years,and the transportation service and efficiency are very good. (Recommend FOB/CIF/CNF)

 ▎CERTIFICATTES & FACTORY HISTORY

We were originally affiliated to a Singaporean private factory in China. We have always only served the excavator industry and have a lot of data and manufacturing experience. Provide professional excavator accessories for dealers in many countries around the world.We insist on quality first, and deal with details so that brand dealers appoint us as partners.

（Information and photos are not displayed to protect the privacy of customers）
